The Atlantis™ solution provides optimal function and esthetics for patient-specific, cement-retained abutments.
Atlantis™ is platform- and material-independent and compatible with all major implant systems, such as Astra Tech, Nobel Biocare, Straumann and Biomet 3i.
With Atlantis VAD™ (Virtual Abutment Design) software, abutments are uniquely designed from the final tooth shape for a more natural esthetic result.
Atlantis™ abutments are available in zirconia, titanium or gold-shaded titanium. Each abutment is designed using our patented Atlantis VAD™ (Virtual Abutment Design) software.

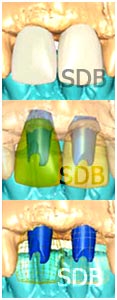

Atlantis VAD™ (Virtual Abutment Design) is a patented process using 3D scanning to generate an exact virtual image of the upper and lower implant-level models.
The scanned image allows each Atlantis™ abutment to be individually designed for the specific space it will fit and in relation to the surrounding teeth.
When all the parameters have been met, an abutment design technician inspects and approves the case.

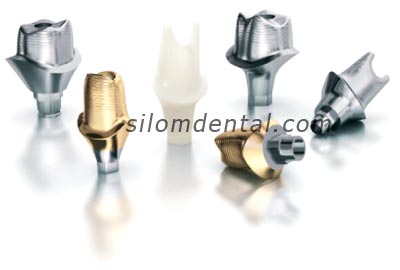

Atlantis™ abutments are available in zirconia, titanium or gold-shaded titanium (Atlantis GoldHue™).
Each abutment is precision-machined from a solid blank of medical grade titanium alloy or zirconia.
Atlantis™ abutment in titanium
Atlantis™ abutments are among the very first CAD/CAM titanium abutments to be anatomically designed and produced for each specific patient and indication.
The excellent design means there is no need for hand-grinding by a technician or a clinician. The abutments are milled from titanium alloy blanks.
Atlantis GoldHue™ abutment
The Atlantis GoldHue™ abutment has the same features and benefits as the Atlantis™ abutment in titanium. In addition,
it has a thin coating of titanium nitride, which gives it a warm gold-shaded color. This is an advantage in esthetically challenging cases
with thin soft tissue or when using all-ceramic crowns.
Atlantis™ abutment in zirconia - white and shaded
The Atlantis abutment in zirconia is one of the few all-zirconia, engineered solutions currently on the market. Made of Y TZP (yttria-stabilized tetragonal zirconia polycrystals),
these abutments are milled from a solid zirconia blank for unmatched strength and durability, color consistency, excellent biocompatibility and reduced plaque build-up in
comparison to titanium. For increased flexibility, options of white and shaded zirconia are available. The shaded zirconia material option is natural tooth-like in color
and especially ideal for cases with thin gingival tissue or where soft tissue migration occurs.
Abutment screws
All abutments are delivered with the corresponding abutment screw. The abutment screws are designed and produced to match
the internal geometry of Atlantis™ patient-specific abutments.
Atlantis Gemini™ and Atlantis Gemini+™
Atlantis Gemini™ abutment is a functionally identical duplicate of the original abutment which can serve as a master die for enhanced laboratory accuracy and optimized crown fit.
It is ordered and delivered together with the original abutment.
Atlantis Gemini+™ abutment allows changes to be made to an existing abutment design at a later time.
This eliminates the need for new impressions and registrations as well as the need to modify the abutment by hand.
