Single Tooth Abutment Indications :

• Single-unit implant restorations with limited interdental space
• Cement-retained

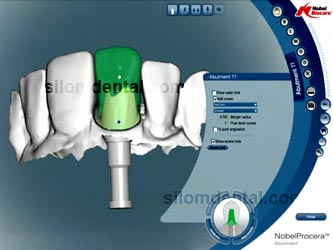

NobelProcera Titanium Abutment :

• All indications
• Individualized abutment design for superior esthetics
• For Nobel Biocare implants and other major implant systems
• Exceptional strength
• Miled from a solid monobloc
• Unlimited emergence profile (5-axis milling)

NobelProcera Zirconia Abutment :

• All indications
• Cement-and screw-retained restorations
• Individualized abutment design for superior esthetics
• For Nobel Biocare implants and other major implant systems
• Strong and biocompatible
• In four shades: white, light, medium and intense

1. Impression

• Place the Impression Coping Implant Level onto the implant and make an implant level impression.
• Connect the healing abutment or temporary restoration and send the impression to the laboratory.

2. Laboratory procedures
A model is made, the abutment is modified if necessary, and a restoration is made.
Alternatives :

• NobelProcera Crown veneered with dental ceramics
• Conventional crown

3. Abutment connection

• Remove the temporary restoration. Ensure that the implant platform is free from any soft tissue or bone remnants.
• Connect the abutment and tighten the screw using the Screwdriver Unigrip.
• A radiograph can help to confirm accurate seating of the abutment.
• Tighten the abutment screw to 35 Ncm using the Manual Torque Wrench Prosthetic and Screwdriver Machine Unigrip.

4. Cementation of final restoration

• Block out screw access hole.
• Cement the restoration using temporary cement or final cement. The restoration should be in light occlusion and excursive contact should be minimal.
