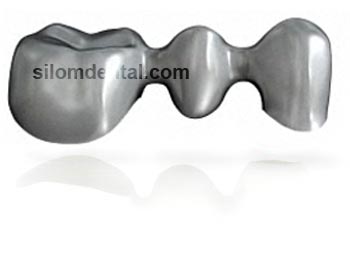

NobelProcera Bridge Titanium Indications :

• Indicated for all positions in the mouth
• A bridges, designed to fit into a block, 80 mm x 80 mm x 30 mm (length, width, height)
• Minimum thickness 0.4 mm
• The connector dimension of a multi-unit framework depends on the distance between the supporting teeth
• Tooth-and implant-supported restorations

NobelProcera Bridge Titanium Contraindications :

• Cases with lenght that exceed the maximum limits are contraindicated
• Bruxism

1. Preparation

• Eliminate sharp edges, undercuts, and grooves.
• Establish tapered axial walls.
• Provide adequate space for the coping and the dental ceramics porcelain.
• Provide sufficient reduction (1.2 mm to 1.5 mm).
• Only select cases where you have the ability to result in a 3 mm connector height.
• Avoid sharp angles on the occlusal surface.
• Provide sufficient (1.5 mm to 2 mm) occlusal/incisal reduction.
• Avoid preparations that are excessively tapered or too close to parallel. The ideal total occlusal convergence is 6-10 degree.

2. Impression

• Make an ordinary crown and bridge impression using your preferred impression material and method.
• Send the impression to the laboratory.

3. Laboratory procedures

• The dies and model are scanned using the NebelProcera Scanner. The data is transferred to a NobelProcera production facility.
• The bridges is milled from a homogenous titanium block for high strength and retuned to the laboratory.
• The restoration is completed using veneering dental ceramic material and sent to the clinician.

4. Cementation

To save chair time, the NobelProcera Bridge Titanium can be cemented using conventional crown and bridge cement or it can be bonded.
