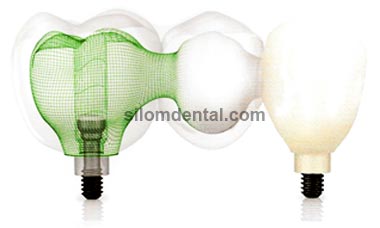

NobelProcera™ Implant Bridge Titanium

• Fixed solution for all indications
• 2-14 units
• Implant and abutment level
• Grand 2 titanium
• For Nobel Biocare implants and other major implant systems
• Exceptional strength
• Milled from a solid monobloc

1A. Implant level impression

• Place Impression Coping onto the implants and make an implant level impression.
• Connect the temporary restoration or healing abutment and send the impression to the laboratory.

1B. Abutment level impression

• Place the Impression Multi-unit on the Multi-unit Abutments.
• Connect the temporary restoration or healing cap and send the impression to the laboratory.

2. Laboratory procedures

• A model is made and a rasin framework is produced and sent to a NobelProcera production facility or scanned by using the NobelProcera Scanner.
• The framework is milled from a solid piece of titanium and returned to the laboratory.
• The restoration is completed using conventional methods.

3A. Connection of final restoration at implant level

• Ensure that the implants are free from any solf tissue or bone remnants.
• Connect the restoration to the implants with abutment screws. Starting with the implant nearest to the middle of the bridge, tighten the remaining screws, alternating left and right sides.
• Tighten the abutment screws to 35Ncm using the Manual Torque Wrench Prosthetic and Screwdriver Machine Unigrip.
• Fill the screw access holes with a suitable material, such as gutta-percha, silicone, or temporary filling material.

3A. Connection of final restoration at abutment level

• Connect the restoration to the abutment with prosthetic screws. Starting with the implant nearest to the middle of the bridge, tighten the remailing screws, alternating left and right sides
• Tighten the prosthetic screws to 15Ncm using the Manual Torque Wrench Prosthetic and Screwdriver Machine Unigrip.
• Fill the screw access holes with a suitable material, such as gutta-percha, silicone, or temporary filling material.
